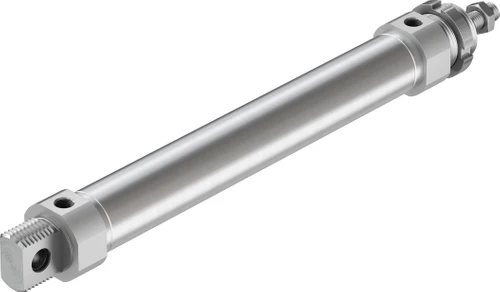

Description
- Stroke200 mm
- Piston diameter32 mm
- Piston rod threadM10x1.25
- CushioningSelf-adjusting pneumatic end-position cushioning
- Mounting positionAny
- Structural designPiston Piston rod Cylinder barrel
- Position sensingFor proximity sensor
- Symbol00992970
- Operating pressure0.1 MPa … 1 MPa
- Operating pressure1 bar … 10 bar
- Mode of operationDouble-acting
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Cleanroom classClass 6 according to ISO 14644-1
- Ambient temperature-20 °C … 80 °C
- Cushioning length14 mm
- Theoretical force at 6 bar, retracting415 N
- Theoretical force at 6 bar, advancing482.5 N
- Moving mass301 g
- Product weight680 g
- Type of mountingWith accessories
- Pneumatic connectionG1/8
- Note on materialsRoHS-compliant
- Cover materialWrought aluminum alloy
- Seals materialNBR TPE-U(PU)
- Piston rod materialHigh-alloy steel
- Material of cylinder barrelHigh-alloy stainless steel
